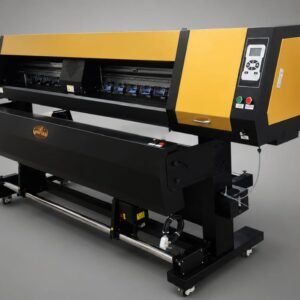

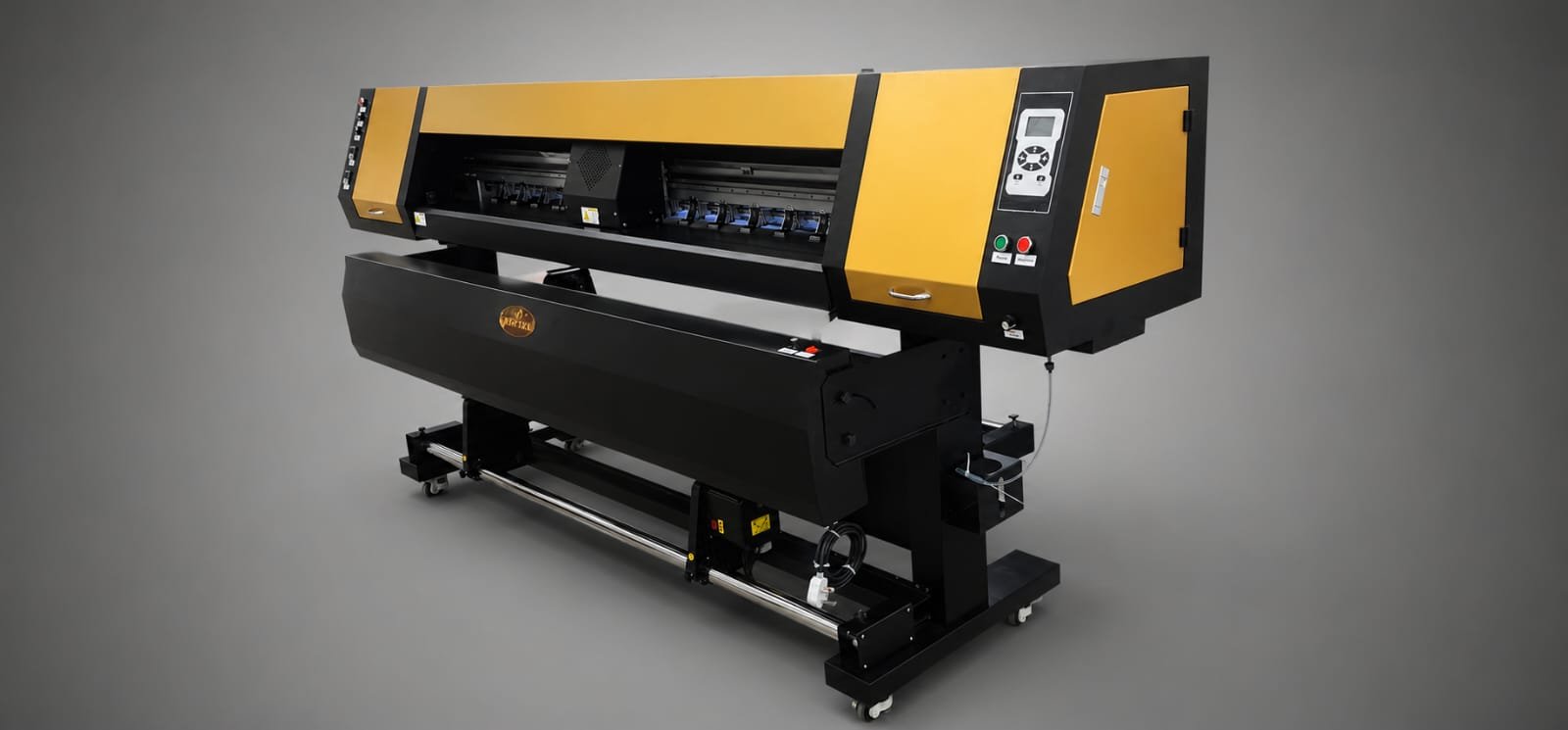

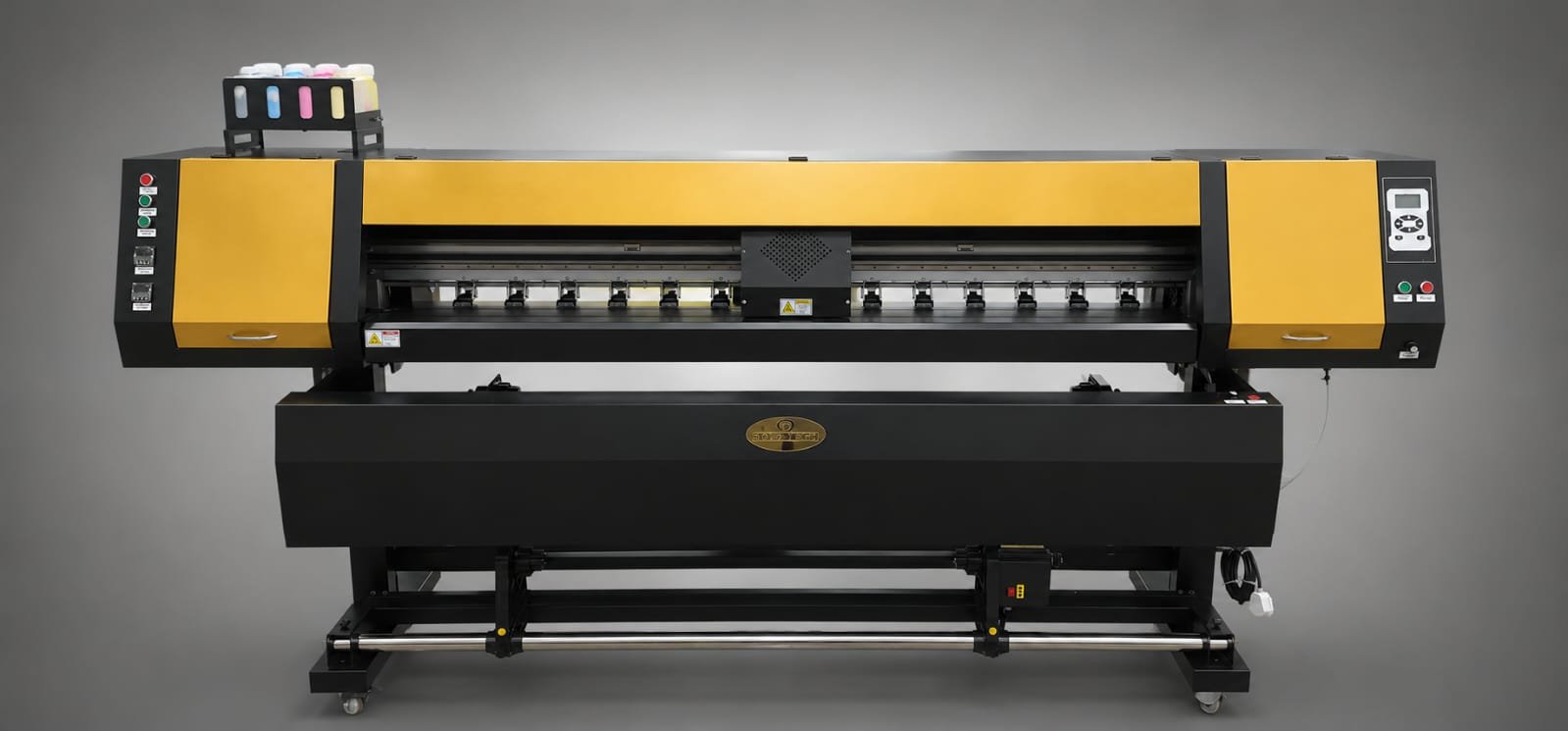

E-jet 1902
E-jet 1902 with advanced Sunyung Board Technology delivers high-speed printing, smooth operation, and outstanding print quality. Designed for flex, vinyl, banner, wallpaper, and advertising applications, it provides vibrant color output, stable performance, low maintenance, and reliable production. Its strong industrial structure ensures durability and continuous professional printing performance.
| Specification | Pantherjet i3200/1 | Pantherjet i3200/2 |
|---|---|---|
| Printhead | Micro piezo i3200 print head | Micro piezo i3200 print head |
| Inks | Eco-Solvent based | Eco-Solvent based |
| Maximum printing width | 150cm | 180cm |
| Resolution | 720dpi, 1440dpi, 2880dpi | 720dpi, 1440dpi, 2880dpi |
| Printing modes | 3pass, 4pass, 6pass, 8pass, 12pass | 3pass, 4pass, 6pass, 8pass, 12pass |
| Speed with single Print head | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h |
| Speed with two Print heads | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h |
| Ink cassette capacity | 1000cc/color | 1000cc/color |
| Three heating sections | None | Pre-heater, printing bed heater, rear heater (30°C–65°C) |
| Picture drying system | Standard configuration: Infrared heating with fan drying system | Standard configuration: Infrared heating with fan drying system |
| Auto feeding/collecting system | Standard configuration | Standard configuration |
| Environmental conditions | Temperature: 15–25°C Relative Humidity: 40%–65% |
Temperature: 15–25°C Relative Humidity: 40%–65% |
| Dimensions / Weight | 240×75×130cm Gross: 300kg Net: 200kg |
240×75×130cm Gross: 300kg Net: 200kg |
