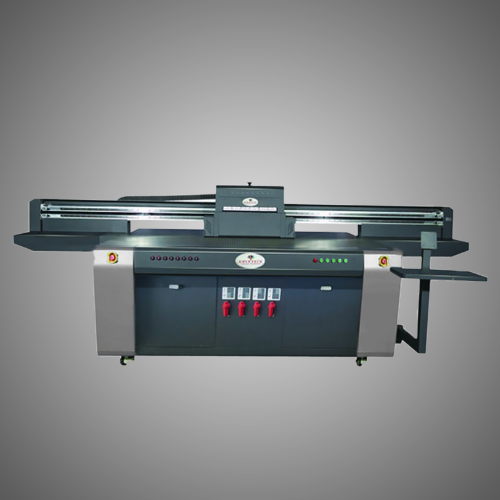

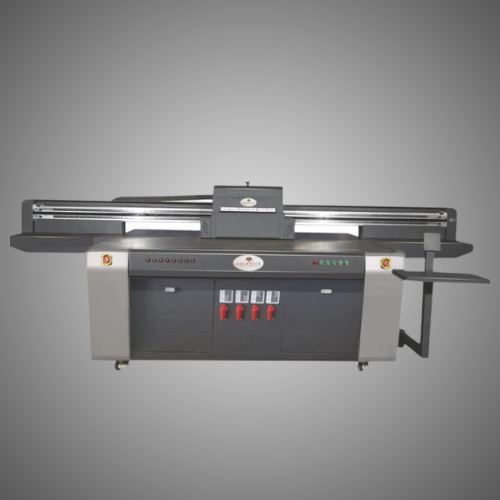

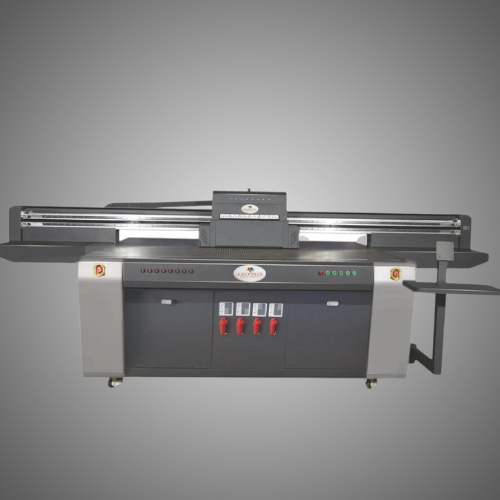

Sunjet 2513 EP I3200
Sunjet 2513 EP I3200 is a high-performance UV flatbed printing machine designed for industrial and commercial printing applications. Equipped with advanced Epson i3200 printheads, the machine delivers ultra-sharp image quality, vibrant color output, and smooth high-speed printing performance. It supports printing on acrylic, glass, wood, MDF, PVC, leather, ceramic tiles, foam board, metal sheets, and many rigid materials with excellent durability and precision. The UV LED curing system ensures instant drying, scratch resistance, and long-lasting print quality. Its heavy-duty structure, automatic ink supply system, vacuum suction platform, and anti-clogging technology provide stable and continuous production for signage, interior décor, customized products, promotional items, and industrial printing applications.
| Model | Sunjet 2513EP | Sunjet 3020EP |
|---|---|---|
| Print Head | Epson i3200 U1 Industrial Printhead | |
| Printing Technology | Piezoelectric on-demand inkjet technology with grayscale capability | |
| No. of Printheads | 2 Epson i3200 print heads (standard) | Up to 6 print heads (optional) |
| Configuration |
(1) CMYK + White (2) CMYK + Varnish (3) CMYK + White + CMYK (4) CMYK + CMYK + White + varnish |
|
| Structure | Industrial Structure Iron Frame With Heavy Duty Double Ball Screw | |
| X&Y Motor | 3 AC Servo Motor & Drives (1 for X 750w, 2 for Y 400w) from JMC / Panasonic (Japan) | |
| Maximum Print Size | 250cm (W) ×130cm (H) | 300cm (W) ×200cm (H) |
| Printing Resolution | 720×900 dpi (6pass), 720×1200 dpi (8pass), 720×1800 dpi (12pass) | |
| Printing Direction | Uni and Bi-Direction | |
| Printing Technology | Variable Dot Printing (Gray Scale Printing) | |
| Material Thickness | Max. Thickness: 10 cm (100mm) | Max. Thickness: 11 cm (110mm) |
| Ink Type | UV LED Curable Inks | |
| Ink Color | Cyan, Magenta, Yellow, Black, White, Varnish (optional) | |
| Ink Capacity | 1.5 Liter Bottle | |
| Ink Supply System | Negative Pressure System (NPS) With Automatic Ink Supply | |
| UV Technology | Four UV LED lamp | |
| RIP Software / Boards | RIIN 7.2v Latest / MAIN TOP 7.1v, BYHX Boards | |
| Interface | Ethernet | |
| Power Requirements | 220-230 V, 50/55Hz | |
| Required Power Capacity | For Printer Operation (15A) max. + For vacuum Platform (15A) max | |
| Power Consumption | Maximum 6.5 kva | |
| Environment |
(Power on) Temperature: 23°C to 30°C (73° to 86°F) Humidity: 35 to 80% (Power off) Temperature: 10° to 40°C (41° to 104°F) Humidity: 20 to 80% |
|
| Assembled Dimensions (L×W×H) | 4330×2290×1675mm | 4880×3000×1700mm |
| Net Weight | 1500kgs Approx. | 2500kgs Approx. |
