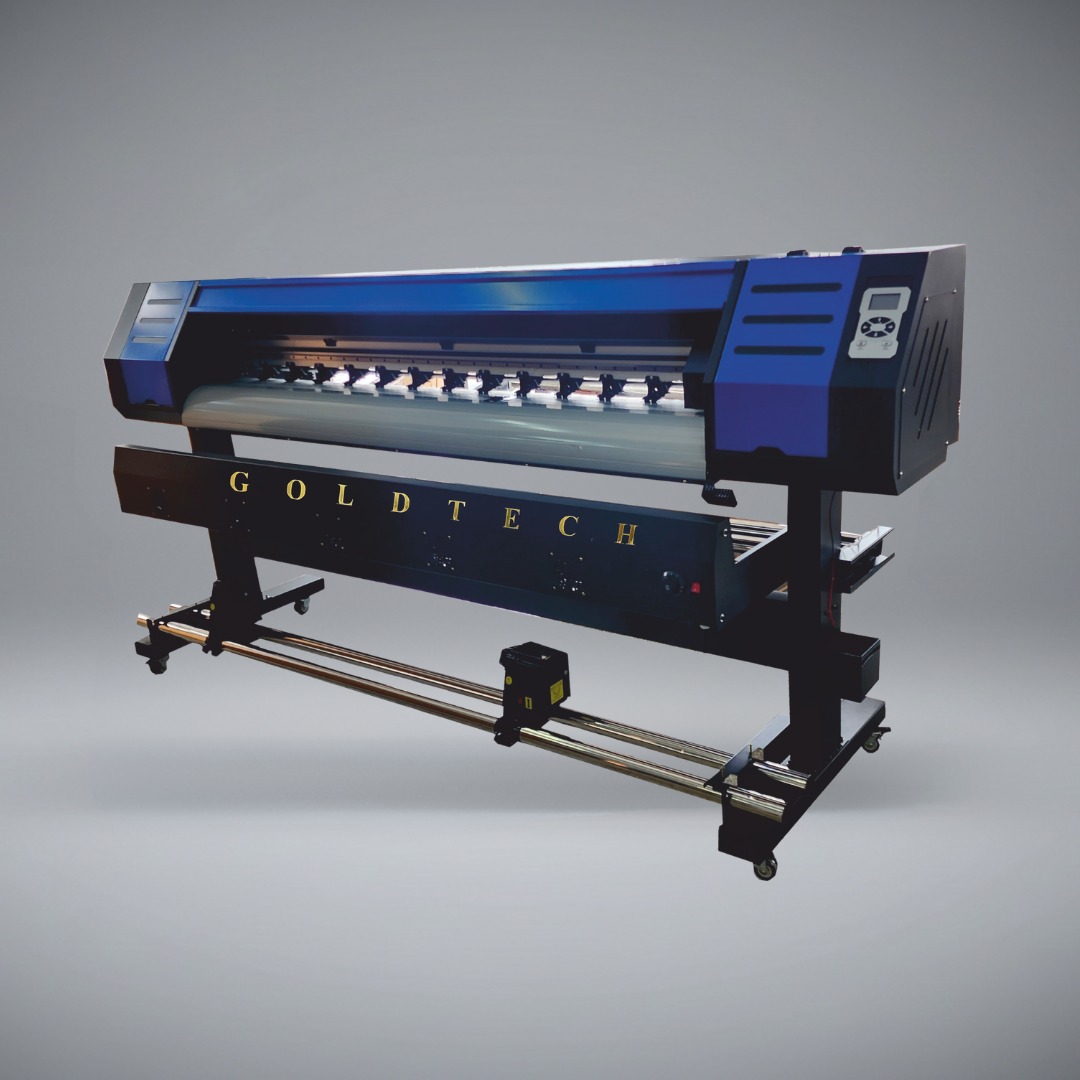

Pantherjet 1801
Pantherjet 1801 is a 6 Feet Eco Solvent Printing Machine with a High-Performance Sunyung Board for Stable Printing, Smooth Operation, and Sharp Color Output. It delivers Reliable Speed and Excellent Print Quality for Flex, Vinyl, Banner, and One Way Vision Printing applications. Ideal for Signage and Advertising Businesses.
| Specification | Pantherjet i3200/1 | Pantherjet i3200/2 |
|---|---|---|
| Printhead | Micro piezo i3200 print head | Micro piezo i3200 print head |
| Inks | Eco-Solvent based | Eco-Solvent based |
| Maximum printing width | 150cm | 180cm |
| Resolution | 720dpi, 1440dpi, 2880dpi | 720dpi, 1440dpi, 2880dpi |
| Printing modes | 3pass, 4pass, 6pass, 8pass, 12pass | 3pass, 4pass, 6pass, 8pass, 12pass |
| Speed with single Print head | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h |
| Speed with two Print heads | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h |
| Ink cassette capacity | 1000cc/color | 1000cc/color |
| Three heating sections | None | Pre-heater, printing bed heater, rear heater (30°C–65°C) |
| Picture drying system | Standard configuration: Infrared heating with fan drying system | Standard configuration: Infrared heating with fan drying system |
| Auto feeding/collecting system | Standard configuration | Standard configuration |
| Environmental conditions | Temperature: 15–25°C Relative Humidity: 40%–65% |
Temperature: 15–25°C Relative Humidity: 40%–65% |
| Dimensions / Weight | 240×75×130cm Gross: 300kg Net: 200kg |
240×75×130cm Gross: 300kg Net: 200kg |
