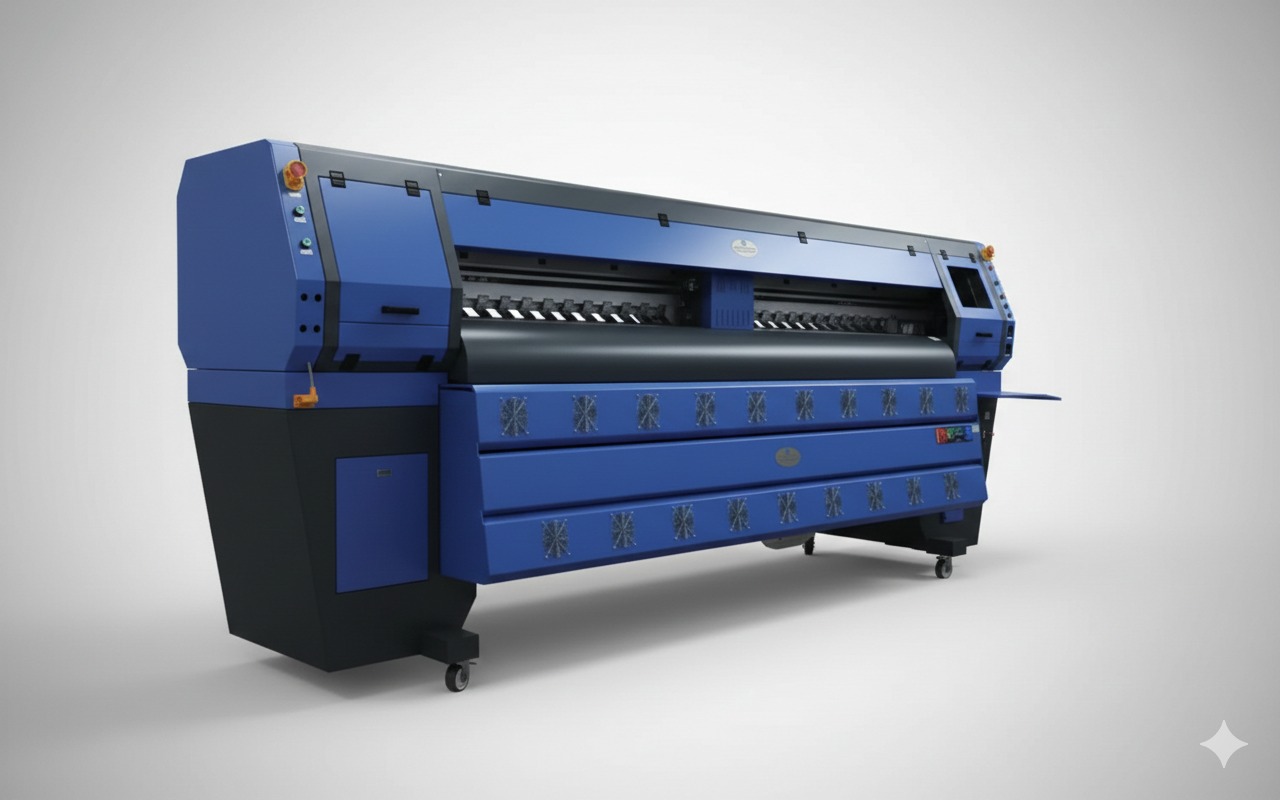

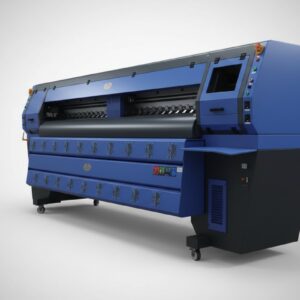

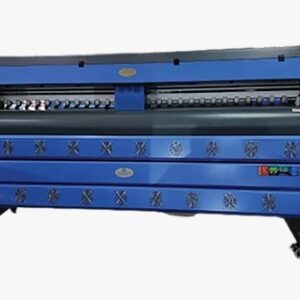

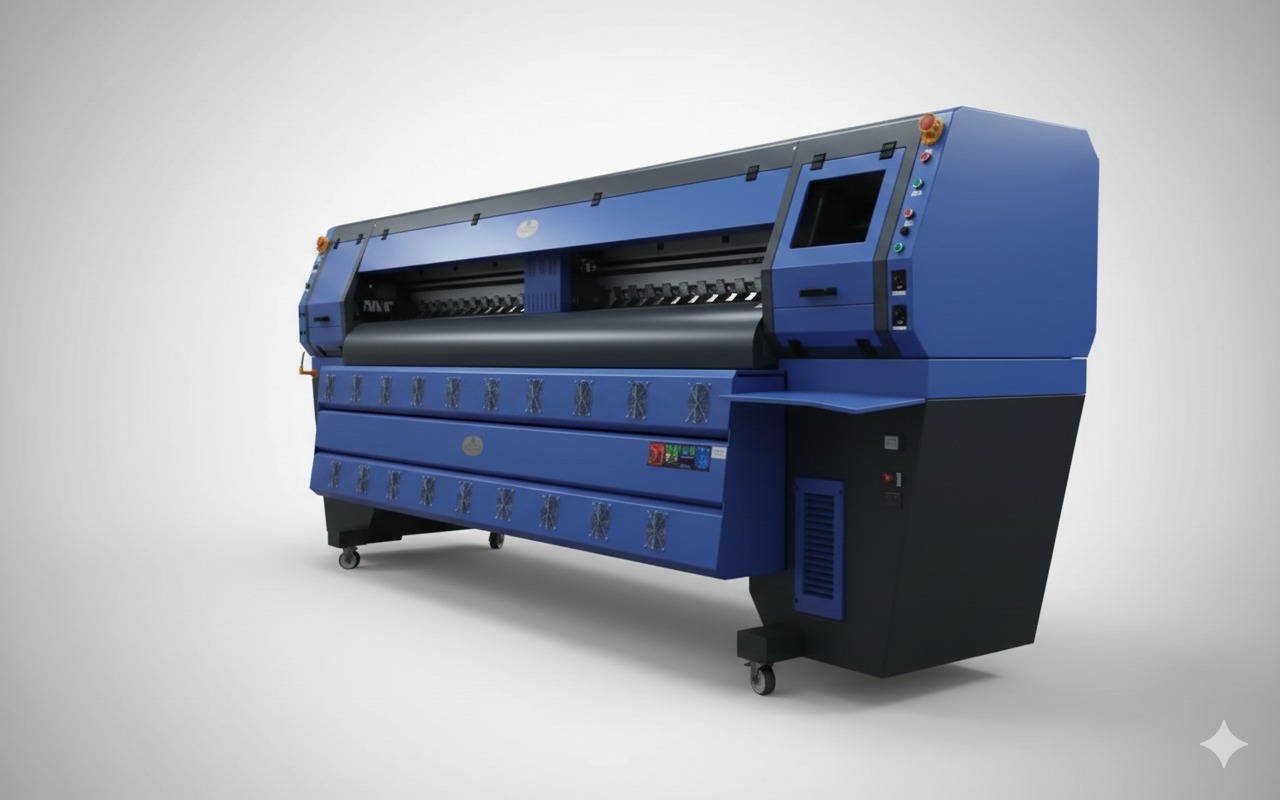

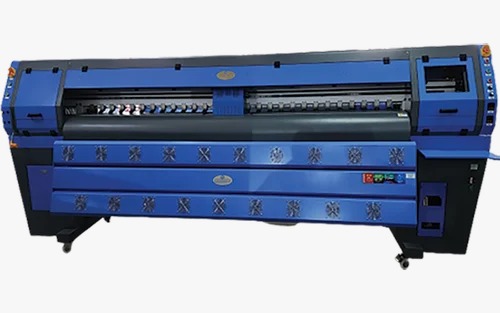

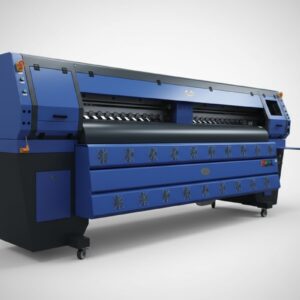

One Way Vision Printing Machine
A One Way Vision Printing Machine is designed to print on perforated vinyl films used for glass and window advertising. It allows visibility from one side while displaying vibrant graphics on the other, making it ideal for shops, offices, vehicles, and commercial spaces.
| Specification | Pantherjet i3200/1 | Pantherjet i3200/2 |
|---|---|---|
| Printhead | Micro piezo i3200 print head | Micro piezo i3200 print head |
| Inks | Eco-Solvent based | Eco-Solvent based |
| Maximum printing width | 150cm | 180cm |
| Resolution | 720dpi, 1440dpi, 2880dpi | 720dpi, 1440dpi, 2880dpi |
| Printing modes | 3pass, 4pass, 6pass, 8pass, 12pass | 3pass, 4pass, 6pass, 8pass, 12pass |
| Speed with single Print head | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h |
| Speed with two Print heads | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h |
| Ink cassette capacity | 1000cc/color | 1000cc/color |
| Three heating sections | None | Pre-heater, printing bed heater, rear heater (30°C–65°C) |
| Picture drying system | Standard configuration: Infrared heating with fan drying system | Standard configuration: Infrared heating with fan drying system |
| Auto feeding/collecting system | Standard configuration | Standard configuration |
| Environmental conditions | Temperature: 15–25°C Relative Humidity: 40%–65% |
Temperature: 15–25°C Relative Humidity: 40%–65% |
| Dimensions / Weight | 240×75×130cm Gross: 300kg Net: 200kg |
240×75×130cm Gross: 300kg Net: 200kg |
