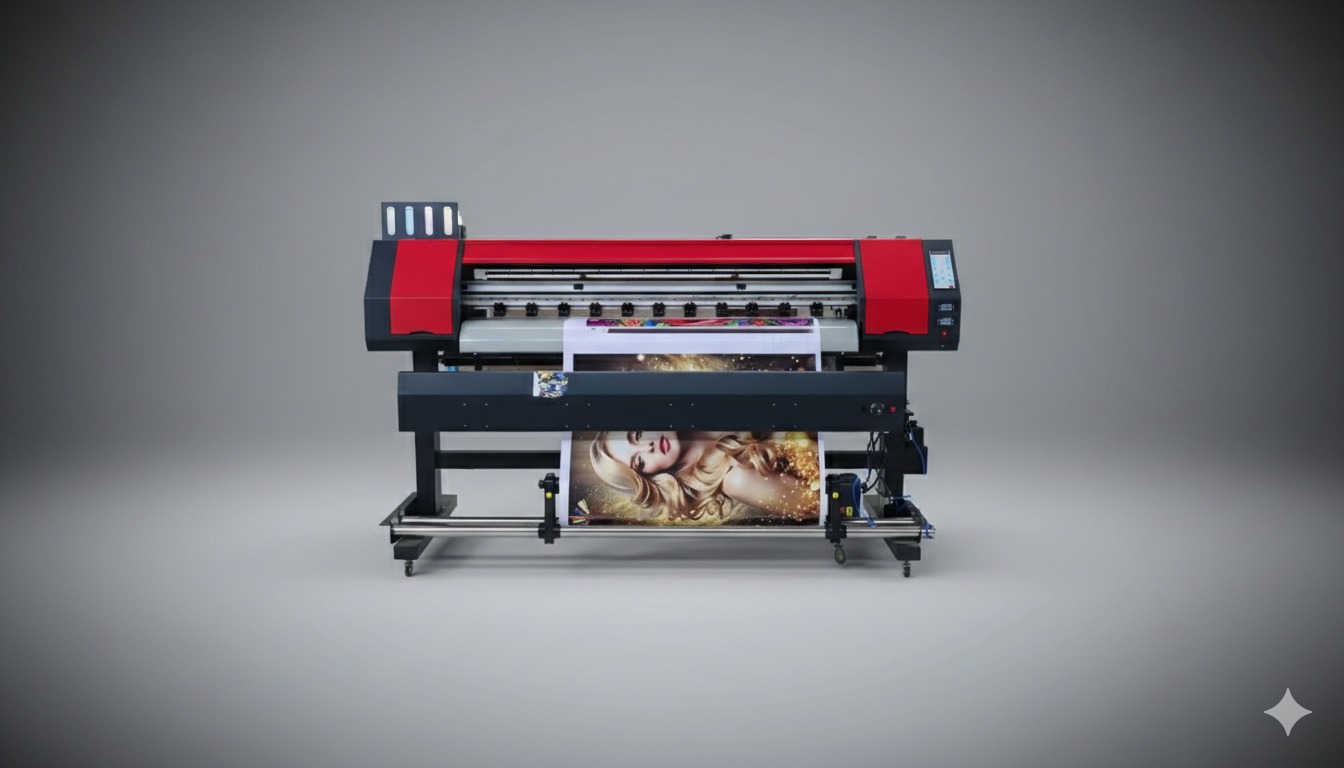

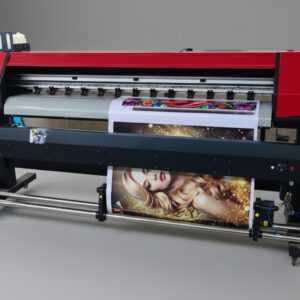

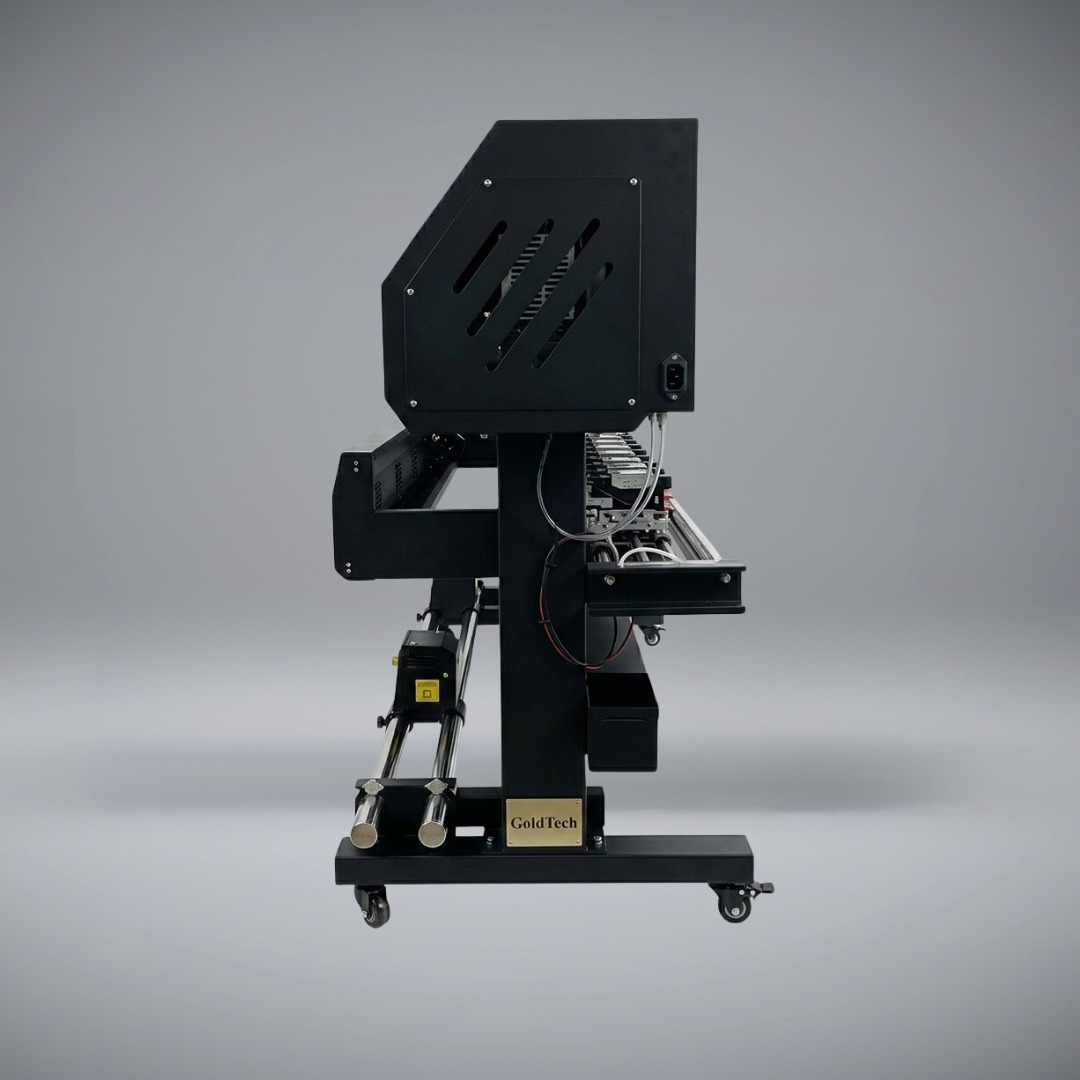

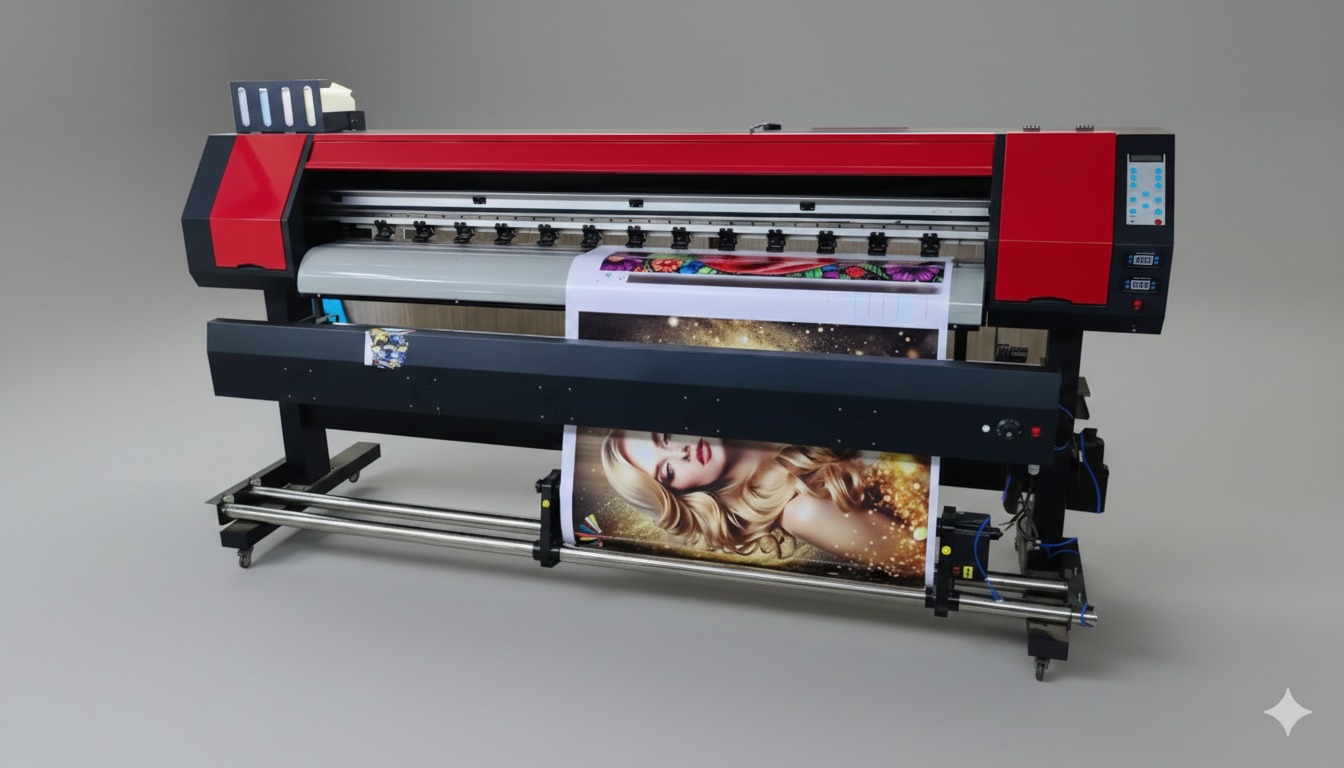

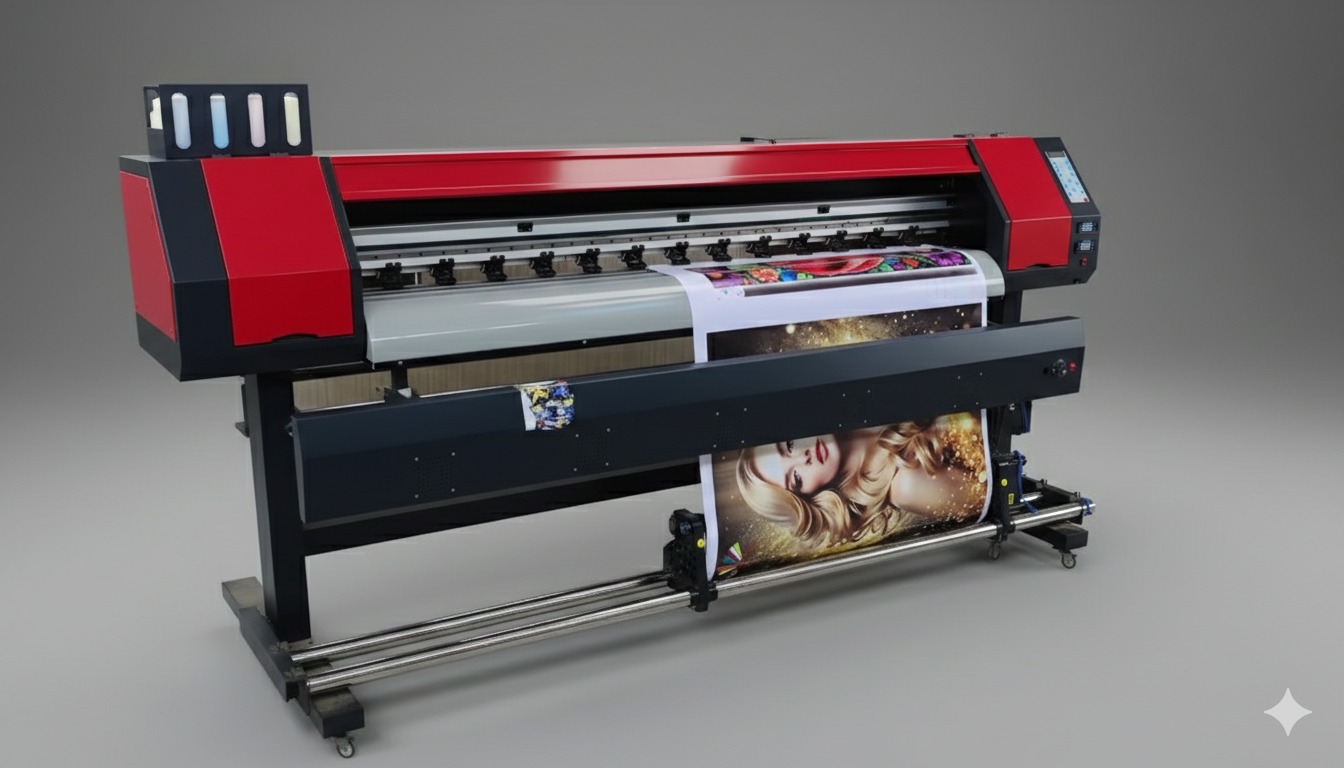

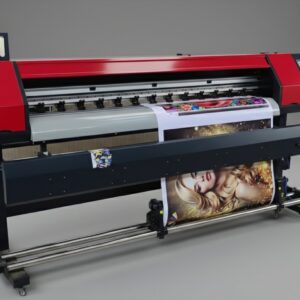

Vinyl Printing Machine
Our eco solvent printer produces durable and weather-resistant vinyl prints ideal for signage, branding boards, shop fronts, and advertising displays with vibrant color output.
A Vinyl Printing Machine is designed for high-resolution printing on vinyl materials, widely used in banners, hoardings, stickers, and advertising graphics. These machines deliver sharp images, vibrant colors, and long-lasting prints, making them ideal for both indoor and outdoor applications.
| Specification | Pantherjet i3200/1 | Pantherjet i3200/2 |
|---|---|---|
| Printhead | Micro piezo i3200 print head | Micro piezo i3200 print head |
| Inks | Eco-Solvent based | Eco-Solvent based |
| Maximum printing width | 150cm | 180cm |
| Resolution | 720dpi, 1440dpi, 2880dpi | 720dpi, 1440dpi, 2880dpi |
| Printing modes | 3pass, 4pass, 6pass, 8pass, 12pass | 3pass, 4pass, 6pass, 8pass, 12pass |
| Speed with single Print head | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h |
| Speed with two Print heads | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h |
| Ink cassette capacity | 1000cc/color | 1000cc/color |
| Three heating sections | None | Pre-heater, printing bed heater, rear heater (30°C–65°C) |
| Picture drying system | Standard configuration: Infrared heating with fan drying system | Standard configuration: Infrared heating with fan drying system |
| Auto feeding/collecting system | Standard configuration | Standard configuration |
| Environmental conditions | Temperature: 15–25°C Relative Humidity: 40%–65% |
Temperature: 15–25°C Relative Humidity: 40%–65% |
| Dimensions / Weight | 240×75×130cm Gross: 300kg Net: 200kg |
240×75×130cm Gross: 300kg Net: 200kg |
