Eco Solvent Printers
The i3200 Eco Solvent Flex Printer is an advanced digital printing solution designed to deliver exceptional print quality on flexible materials such as vinyl, banners, and fabric. Built with cutting-edge i3200 printhead technology, it ensures high-speed performance, sharp resolution, and long-lasting prints for commercial use.
| Specification | Pantherjet i3200/1 | Pantherjet i3200/2 |
|---|---|---|
| Printhead | Micro piezo i3200 print head | Micro piezo i3200 print head |
| Inks | Eco-Solvent based | Eco-Solvent based |
| Maximum printing width | 150cm | 180cm |
| Resolution | 720dpi, 1440dpi, 2880dpi | 720dpi, 1440dpi, 2880dpi |
| Printing modes | 3pass, 4pass, 6pass, 8pass, 12pass | 3pass, 4pass, 6pass, 8pass, 12pass |
| Speed with single Print head | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h | 20㎡/h, 14㎡/h, 10㎡/h, 7㎡/h, 5.5㎡/h |
| Speed with two Print heads | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h | 40㎡/h, 28㎡/h, 20㎡/h, 14㎡/h, 11㎡/h |
| Ink cassette capacity | 1000cc/color | 1000cc/color |
| Three heating sections | None | Pre-heater, printing bed heater, rear heater (30°C–65°C) |
| Picture drying system | Standard configuration: Infrared heating with fan drying system | Standard configuration: Infrared heating with fan drying system |
| Auto feeding/collecting system | Standard configuration | Standard configuration |
| Environmental conditions | Temperature: 15–25°C Relative Humidity: 40%–65% |
Temperature: 15–25°C Relative Humidity: 40%–65% |
| Dimensions / Weight | 240×75×130cm Gross: 300kg Net: 200kg |
240×75×130cm Gross: 300kg Net: 200kg |
Co2 Laser Cutting
Laser cutting is a new high-tech that combines laser technology with computer technology it is a laser processing equipment which includes integrating light machine and electricity.
Our printing solutions are designed to deliver high-quality output, vibrant colors, and long-lasting performance. Whether you are working on banners, vinyl, fabric, or customized products, our solutions ensure precision and efficiency.
| Model | CX-13090 | CX-14090 |
|---|---|---|
| Laser type | Sealed-off CO2 laser generator | Sealed-off CO2 laser generator |
| Laser power | 60W, 80W, 100W, 130W, 150W (customized) | 60W, 80W, 100W, 130W, 150W (customized) |
| Processing area | 1000 × 600 mm | 1400 × 900 mm |
| Max. Engraving speed | 72000 mm/min | 72000 mm/min |
| Max. Cutting speed | 70000 mm/min | 70000 mm/min |
| Position Accuracy | 0.01 mm | 0.01 mm |
| Support Format | BMP, JPEG, GIF, PLT, PCX, TIFF, TAG, CDR, DWG, DXF, HPG, AI etc. | BMP, JPEG, GIF, PLT, PCX, TIFF, TAG, CDR, DWG, DXF, HPG, AI etc. |
| Cooling system | Water cooling | Water cooling |
| Working voltage | AC110V / 220V ±10% / 380V 50/60Hz | AC110V / 220V ±10% / 380V 50/60Hz |
| Auxiliary system | Exhaust fan & air duct | Exhaust fan & air duct |
| Machine size | 1800 × 1500 × 1150 mm | 2000 × 1600 × 1150 mm |
UV roll to roll prinitng Machine
A UV Roll-to-Roll 5 Feet Printer is a large-format printing machine used to print high-quality graphics on flexible roll materials up to 5 feet (around 1.5 meters) wide.
It uses UV (Ultraviolet) ink technology, where the ink is instantly dried (cured) using UV lamps. This makes prints waterproof, scratch-resistant, and long-lasting. It is mainly used for advertising, branding, and signage printing.
| Parameter | Details |
|---|---|
| Model Number | Panterjet 3302 |
| Print Pass & Speed | 2 Head per 400 sft. |
| Paper Size | Upto 300cm |
| Printing Technology | Starjet UV RTR |
| Rip Software | Riin |
| Supported OS | Windows 10, Windows 7, 32bit or 64 bit |
| Media Width | 3.2 meter |
| Interface | Ethercat |
| Material Thickness | 0.5mm to 5mm |
| Print Head | Epson i3200 E1 Head |
| Duty Cycle | Customized |
| Print Technique | Inkjet |
| Brand | EPSON |
| Colour Output | CMYK (White & Varnish Optional) |
| Media Types | Canvas, Leather, PET Film, Reflective Film, Soft Ceiling Film and other flexible materials |
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System |
| Curing | High Quality Water Cooling UV-LED Lamp |
| Feed and Take Up | Automatic Media Feeding & Take Up System |
| Humidity | 40-60% |
| Ink Type | UV Curable Ink |
| Machine Size and Weight | L76cm x W400cm x H150kg / 450 |
| Packing Size and Weight | L563 x W198 x H203cm / 1700 kg |
| Power | Machine 50/60Hz, 110/220V, 3000W |
| Resolution | 720 x 1440 dpi max |
| Temperature Range | 20-28 Degree C |
Solvent/Flex Printer
Solvent flex printers are a powerful solution for businesses looking to produce high-quality, long-lasting prints for banners, vinyl, and outdoor advertising. Designed with advanced solvent ink technology, these printers deliver sharp details, vibrant colors, and excellent durability, making them ideal for both indoor and outdoor applications.
| Model | Super Soniq HQ N-3304KHi | Super Soniq HQ N-3304KHi |
|---|---|---|
| Printhead | KONICA 512i 30pl | KONICA 512i 30pl |
| Number of Printhead | 4 | 8 |
| Number of Head Nozzle | 1024 | 1024 |
| Maximum Bed Width | 3300 mm | 3300 mm |
| Maximum Print Width | 3200 mm | 3200 mm |
| Print Speed |
W/o Feather 480×180 1Pass – 195 sqm/hr 360×360 2Pass – 120 sqm/hr 480×360 3Pass – 80 sqm/hr 360×540 2Pass – 95 sqm/hr |
With Feather 480×180 1Pass – 175 sqm/hr 360×360 2Pass – 92 sqm/hr 480×360 3Pass – 61 sqm/hr 360×540 2Pass – 75 sqm/hr |
| Color | CMYK | |
| Media | Paper, Advertising Banner, PVC, Mesh, Vinyl, Window Film & Canvas | |
| Resolution | Up to 1440 dpi | |
| Media Feeding | Auto Feeding, Auto Take-up / Roll Less than 105kg | |
| Motion Control | JMC 400w X Motor & Drive for High Speed Printing (Panasonic optional) | |
| Auto Cleaning System | Negative Pressure Cleaning, Solvent Cleaning & Anti Clogging Flash Function | |
| Cleaning System | Spyda Negative Pressure System with Glass Tank | |
| Media Heating | Pre Heater, Infrared Heater & Cooling Fan System | |
| Image Format | Bitmap, JPEG, PDF, TIFF (Recommended) | |
| Color Management | Superior ICC Profile | |
| Work Flow | RIP and Print not same time, print after RIP | |
| Print Interface | USB 2.0 | |
| Ink Type | Eco-Solvent / Solvent Based Ink | |
| Software | RIIN / Ultra Print (Recommended) | |
| Print Head Height | 5mm (Maximum) | |
| Work Station | Windows 10 64bit | |
| Voltage | 220V – (+10%) – 15A, 50Hz / 60Hz | |
| Power Consumption | 1500W (220VAC) with Heater 3500W with Infrared Heater 6500W | |
| Working Environment | Temperature 20-28°C, Humidity 40-60% | |
| Machine Dimension | Length 4.52m, Width 1.25m, Height 1.66m | |
| Machine Weight | Gross 1150kg, Net Weight 900kg | |
Fiber Laser Cutting
Fiber laser cutting is an advanced technology used for high-precision cutting of metals such as stainless steel, carbon steel, aluminum, and brass. Known for its speed, accuracy, and clean finish, fiber laser cutting delivers smooth edges with minimal material waste, making it ideal for industrial and commercial applications.
| Category | Technical Parameter |
|---|---|
| Model Name | Signcut-301 / 5A |
| Working area | 1500mm × 3000mm / 1500W |
| Laser power | RAYCUS / MAX |
| X-axis Travel Distance | 3050mm / 100mm Open Type |
| Y-axis Travel Distance | Single bed |
| Z-axis Travel Distance | 120m/min / 1.5G |
| Form of working plate | 0.03mm |
| Fastest positioning speed (XY linkage) | 0.02mm |
| Biggest acceleration | < 75db |
| XY axis positioning accuracy | 380V ±5% 50Hz Three-phase |
| XY axis repeatability | 16 KVA / 32A |
| Machine noise | - |
| Operating Voltage | - |
| Overall power distribution | - |

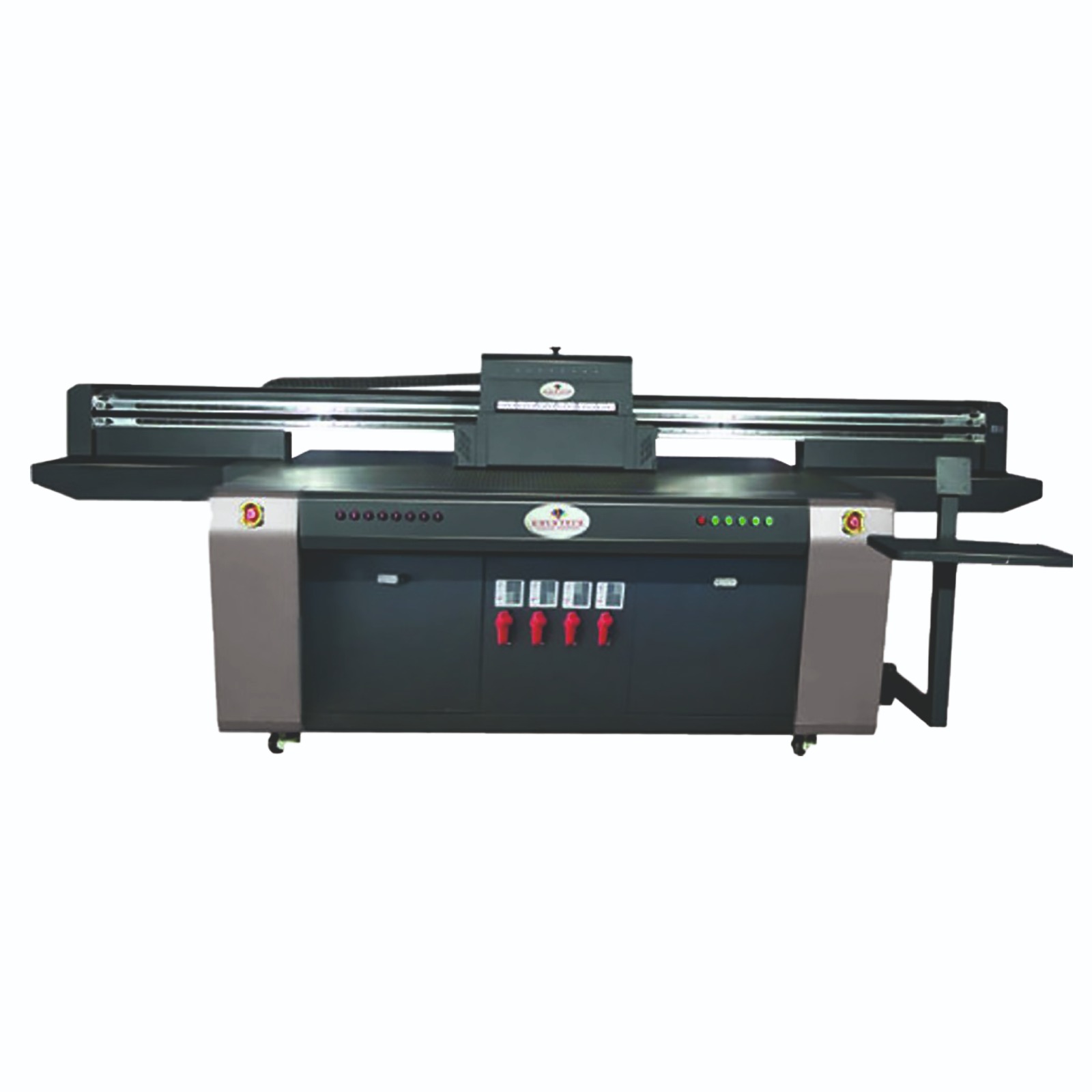

UV Digital Flatbed Printer
UV digital flatbed printing is an advanced printing solution that allows you to print directly on a wide range of surfaces such as glass, acrylic, wood, metal, tiles, and more. It delivers sharp images, vibrant colors, and long-lasting prints, making it ideal for both commercial and creative applications.
| Model | Super Soniq HQ N-3304KHi | Super Soniq HQ N-3304KHi |
|---|---|---|
| Printhead | KONICA 512i 30pl | KONICA 512i 30pl |
| Number of Printhead | 4 | 8 |
| Number of Head Nozzle | 1024 | 1024 |
| Maximum Bed Width | 3300 mm | 3300 mm |
| Maximum Print Width | 3200 mm | 3200 mm |
| Print Speed |
W/o Feather 480×180 1Pass – 195 sqm/hr 360×360 2Pass – 120 sqm/hr 480×360 3Pass – 80 sqm/hr 360×540 2Pass – 95 sqm/hr |
With Feather 480×180 1Pass – 175 sqm/hr 360×360 2Pass – 92 sqm/hr 480×360 3Pass – 61 sqm/hr 360×540 2Pass – 75 sqm/hr |
| Color | CMYK | |
| Media | Paper, Advertising Banner, PVC, Mesh, Vinyl, Window Film & Canvas | |
| Resolution | Up to 1440 dpi | |
| Media Feeding | Auto Feeding, Auto Take-up / Roll Less than 105kg | |
| Motion Control | JMC 400w X Motor & Drive for High Speed Printing (Panasonic optional) | |
| Auto Cleaning System | Negative Pressure Cleaning, Solvent Cleaning & Anti Clogging Flash Function | |
| Cleaning System | Spyda Negative Pressure System with Glass Tank | |
| Media Heating | Pre Heater, Infrared Heater & Cooling Fan System | |
| Image Format | Bitmap, JPEG, PDF, TIFF (Recommended) | |
| Color Management | Superior ICC Profile | |
| Work Flow | RIP and Print not same time, print after RIP | |
| Print Interface | USB 2.0 | |
| Ink Type | Eco-Solvent / Solvent Based Ink | |
| Software | RIIN / Ultra Print (Recommended) | |
| Print Head Height | 5mm (Maximum) | |
| Work Station | Windows 10 64bit | |
| Voltage | 220V – (+10%) – 15A, 50Hz / 60Hz | |
| Power Consumption | 1500W (220VAC) with Heater 3500W with Infrared Heater 6500W | |
| Working Environment | Temperature 20-28°C, Humidity 40-60% | |
| Machine Dimension | Length 4.52m, Width 1.25m, Height 1.66m | |
| Machine Weight | Gross 1150kg, Net Weight 900kg | |
High Gloss Spray coating
A spray coating machine sprays a thin, even layer of liquid coating (paint, varnish, UV coating, or chemicals) onto a surface automatically.
A spray coating solution is designed to apply a thin, smooth, and even layer of coating—such as paint, varnish, UV coating, or protective chemicals—onto different surfaces with precision. It helps achieve a clean, uniform finish that enhances both the appearance and durability of the product.
| Category | Technical Parameter |
|---|---|
| Spray Guns | 1 nos. Automatic Spray Gun (2 or more is optional) |
| Spray Tanks | 1 nos. 10L Spray Tank (2 or more is optional) |
| Speed Spray Conveyer | 1 meter to 5 meter per minutes |
| Speed UV Conveyer | 1 meter to 3 meter per minutes according to material |
| UV Lamp | 50 inch USA mercury UV Lamp 300w per inch |
| IR Heater | 3 KV IR Heater for Immediate Drying |
| Transformer | 100% Copper Transformer up to 200v current for UV Lamp for Long Life |
| Blower fans | 2 High Speed Blower Fans for Coating & UV Lamp |
| Servo Motor for Spray | 180w Integrated Servo Motor JMC |
| Induction Motor & Gear Box | 1 HP Induction Motor with Gear Box for UV Conveyer & 0.5 HP for Spray Booth |
| Operating System | Using Delta PLC with Extension, Fully Automatic HMI with Delta Servo Drives |
| Power Load | UV Lamp 15KW, Servo Motors 2 kW, Blower Fan 1.6 kW, Total Approx 20kW |
| Material Support | Iron, Metal, Stainless Steel, Ceramic Tiles, Acrylic, Glass etc. |
| Spray Width & Length | 122 cm × 305 cm (Adjustable According to need) |
| Material Thickness | Up to 80mm (Can be customized) |
| Dimensions (L×W×H) | Spray Unit: 183×305×180cm; UV Lamp Unit: 153×290×138; Trolley Feeder & Release: 170×427×92 |
| Weight / Temperature | 1950kg; 20°–30°C |
