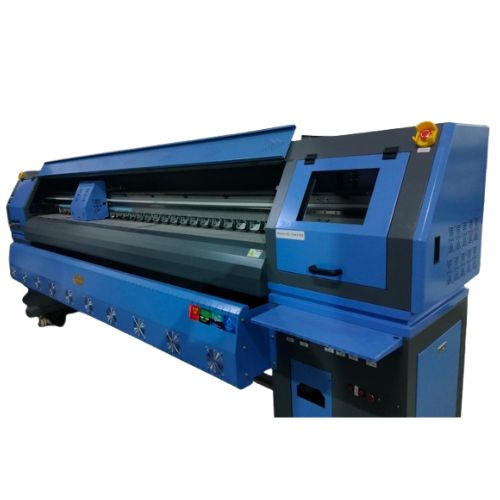

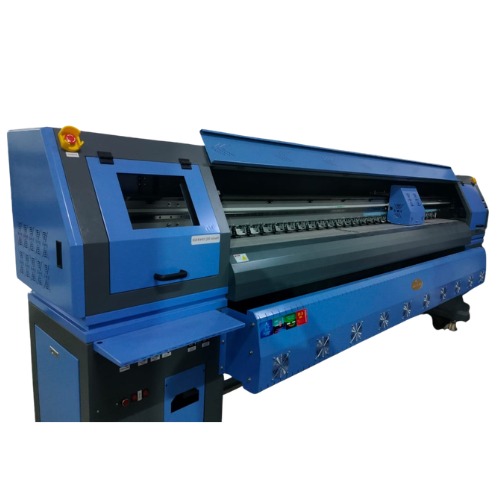

Banner Printer Maxjet Plus 512
The Maxjet Plus 512 Banner Printer is a powerful large-format solvent printing machine designed for high-speed production and superior print quality. Equipped with advanced Konica Minolta 512 printhead technology, it delivers sharp details, vibrant colors, and long-lasting outdoor prints.
| Maxjet 3304 / 3308 KH/PL Solvent Printing Machine | ||
|---|---|---|
| Specification | Maxjet 3304 KH/PL | Maxjet 3308 KH/PL |
| Print Head | Konica Minolta 512 (42/35pl) | Konica Minolta 512 (42/35pl) |
| Number of Printheads | 4 | 8 |
| Nozzles per Head | 1024 | 1024 |
| Max Print Width | 3200 mm | 3200 mm |
| Print Speed |
360×360 (2 Pass) – 93 sqm/hr 480×360 (2 Pass) – 62 sqm/hr 360×540 (3 Pass) – 43 sqm/hr |
360×360 (2 Pass) – 186 sqm/hr 480×360 (2 Pass) – 124 sqm/hr 360×540 (3 Pass) – 80 sqm/hr |
| Color | CMYK | |
| Media | Flex Banner, PVC, Vinyl, Mesh, Window Film, Canvas, Paper | |
| Resolution | Up to 1440 DPI | |
| Media Feeding | Auto Feeding & Auto Take-up (≤ 85 kg) | |
| Motion System | JMC Motor with AC Servo (Panasonic Optional) | |
| Cleaning System | Negative Pressure Cleaning & Anti-Clog System | |
| Heating System | Pre, Bed & Post Heater with Infrared + Fan | |
| Ink Type | Eco-Solvent / Solvent Ink | |
| Software | PhotoPrint / Maintop / UltraPrint | |
| Power | 200–220V, 50/60Hz | |
| Environment | 20–26°C, 40–60% Humidity | |
| Machine Size | 4.50m × 1.15m × 1.55m | |
| Weight | Gross: 900 kg | Net: 700 kg | |
