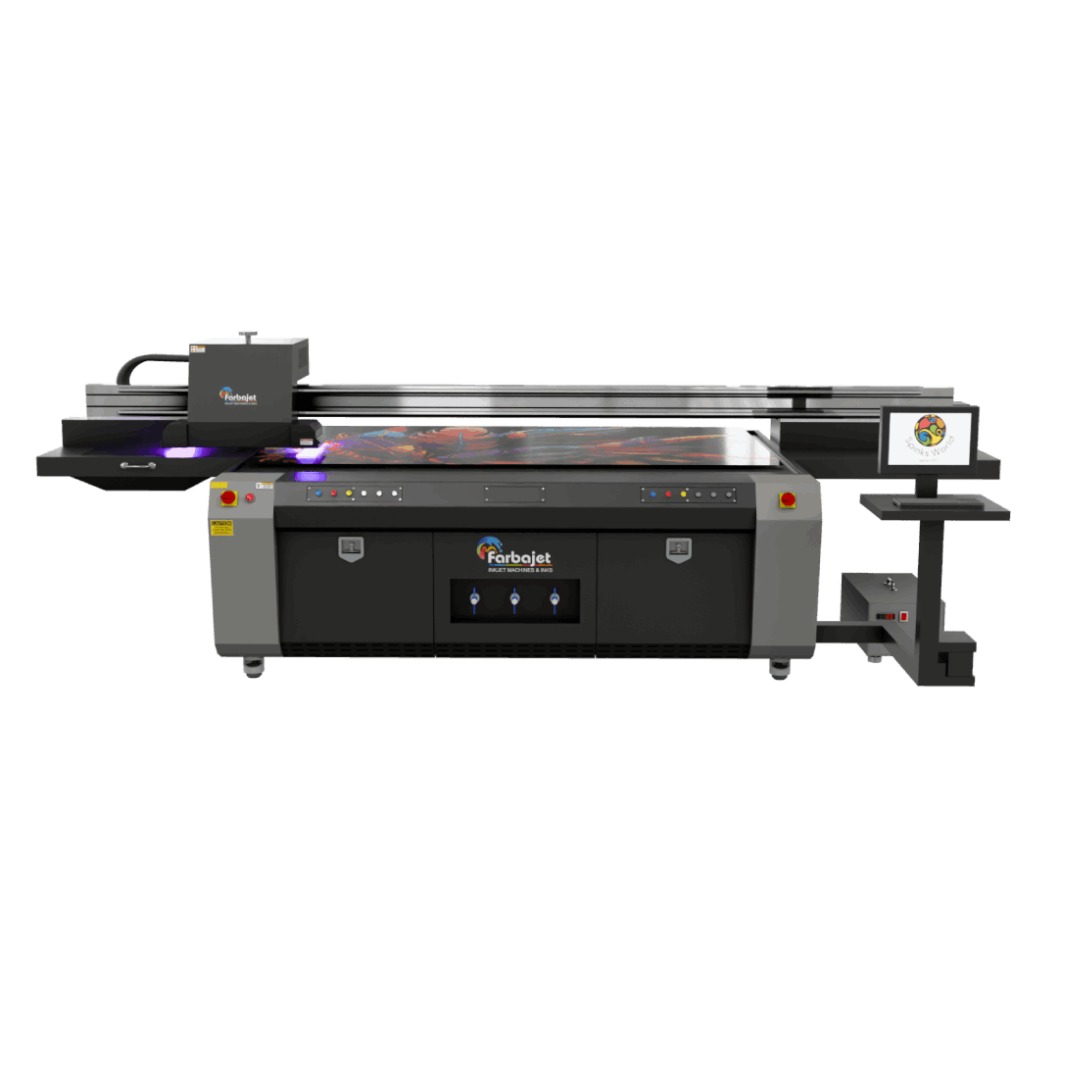

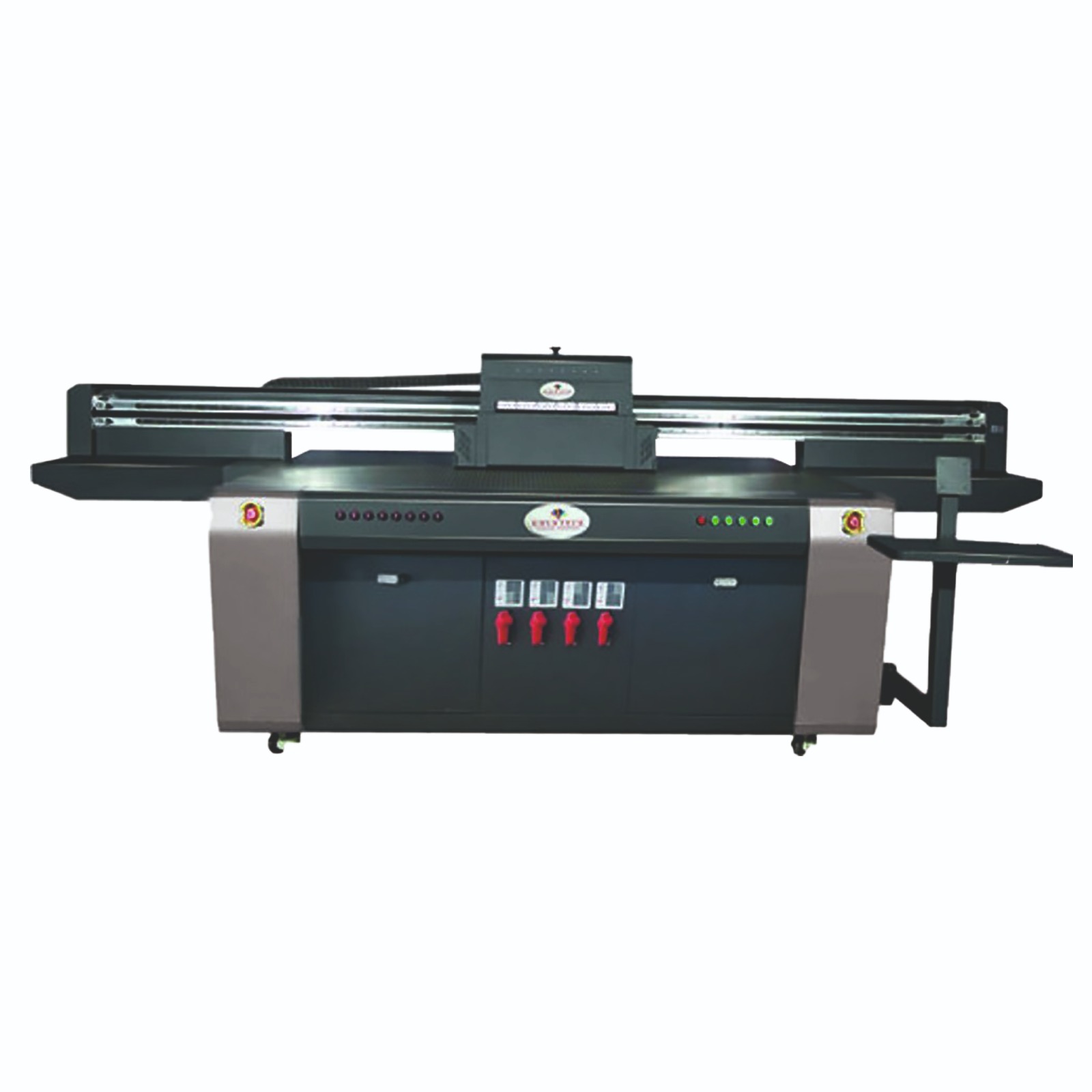

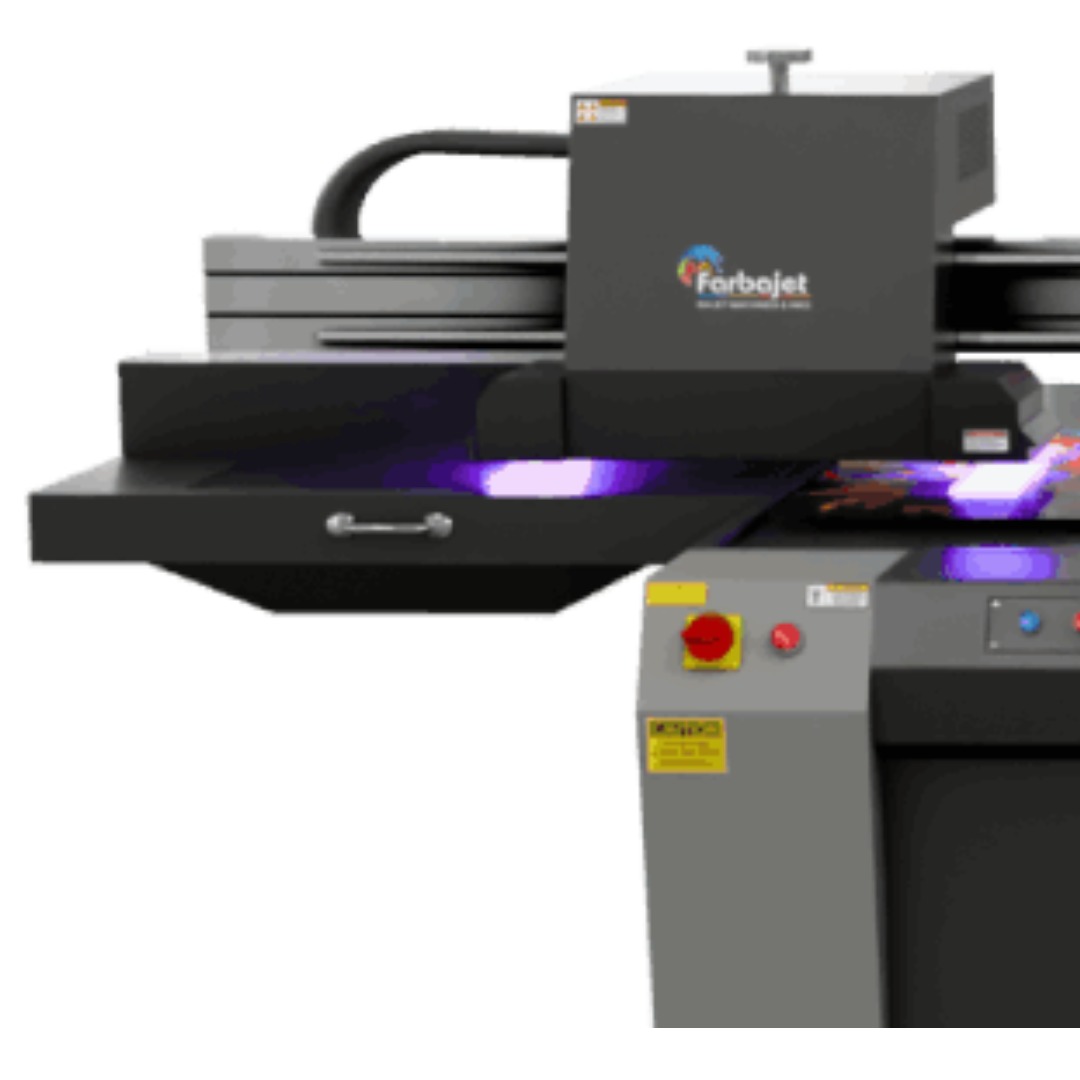

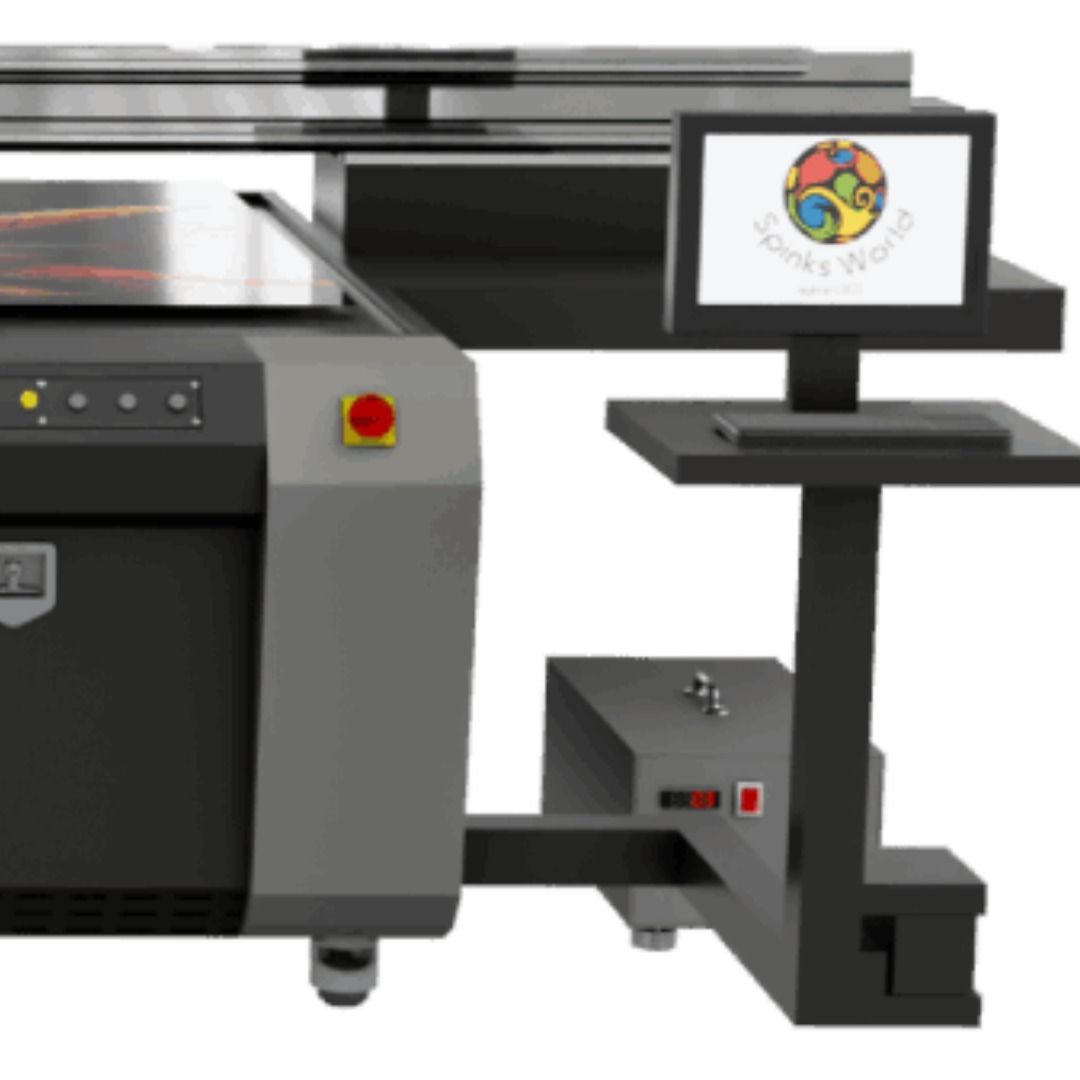

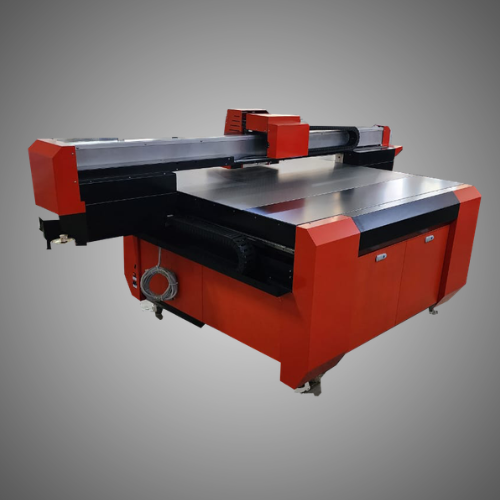

Trophy Printing Machine
The machine hosts a form of digital printing which uses ultraviolet lights to dry or cure ink as it’s printed. What sets this machine apart from other printers is the unique drying process – called UV curing.Bed Size 8×4 with Ricoh Gen Print Head.
| Specification | Pantherjet i3200/1 | Pantherjet i3200/2 |
|---|---|---|
| Printhead | Micro piezo i3200 print head | |
| Inks | UV based | |
| Maximum printing width | 150cm | 180cm |
| Resolution | 720dpi, 1440dpi, 2880dpi | |
| Printing modes | 3 pass, 4 pass, 6 pass, 8 pass, 12 pass | |
| Speed with single Print head | 20m²/h, 14m²/h, 10m²/h, 7m²/h, 5.5m²/h | |
| Speed with two Print heads | 40m²/h, 28m²/h, 20m²/h, 14m²/h, 11m²/h | |
| Ink cassette capacity | 1000cc/color | |
| Three heating sections | None | Pre-heater, printing bed heater, rear heater 30°C–65°C |
| Picture drying system | Standard configuration: Infrared heating with fan drying system | |
| Auto feeding/collecting system | Standard configuration | |
| Environmental conditions | Temperature 15-25°C | Relative Humidity: 40%-65% | |
| Dimensions (L×W×H) / Weight | 240×75×130cm | Gross Weight: 300kg | Net Weight: 200kg | |
*Note: Printing speed varies depending on Father Mode & Quality Mode
