Banner printing machine
Print high-adhesion, scratch-resistant stickers for product labels, packaging, promotions, and branding with sharp detailing and long-lasting finish.

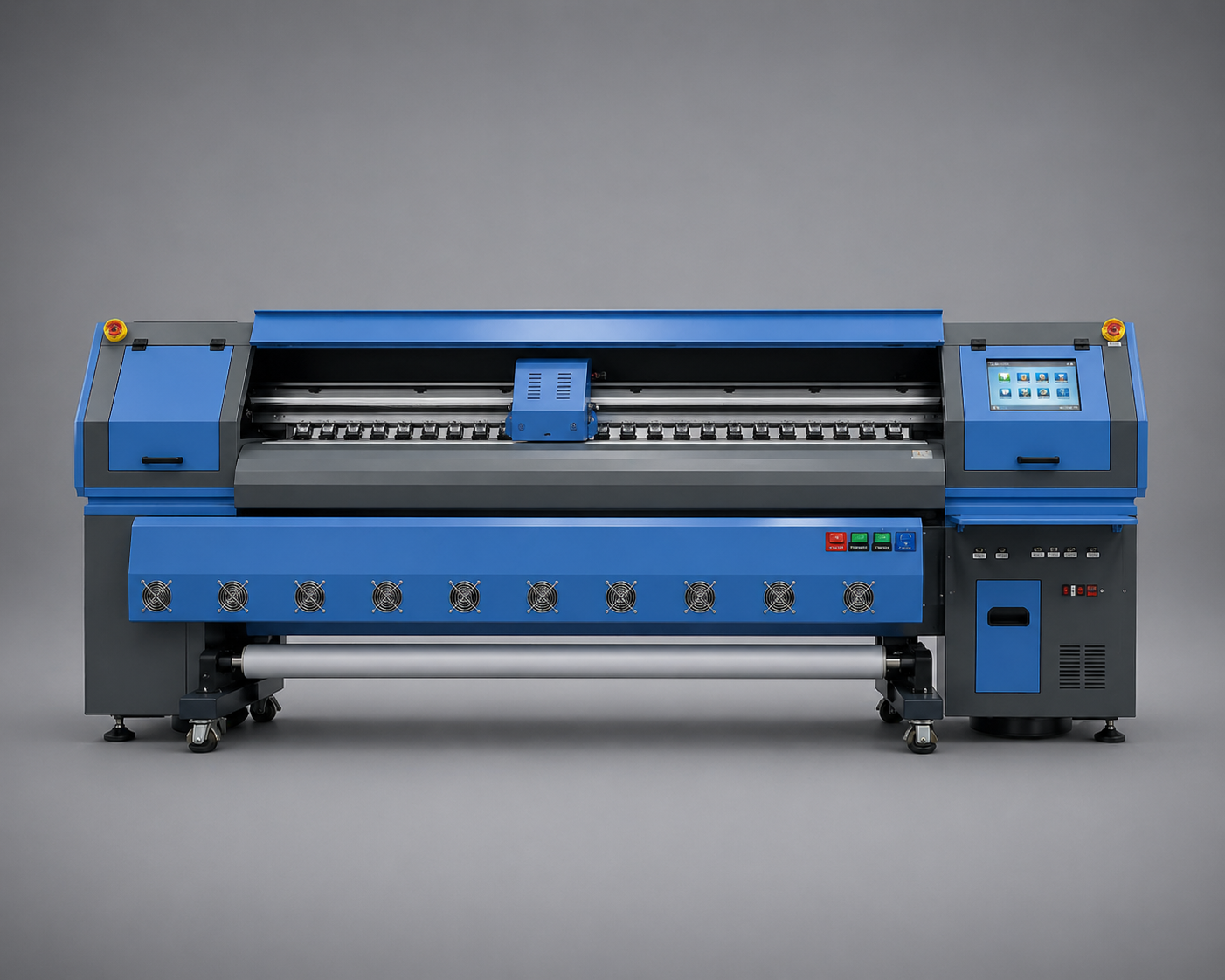

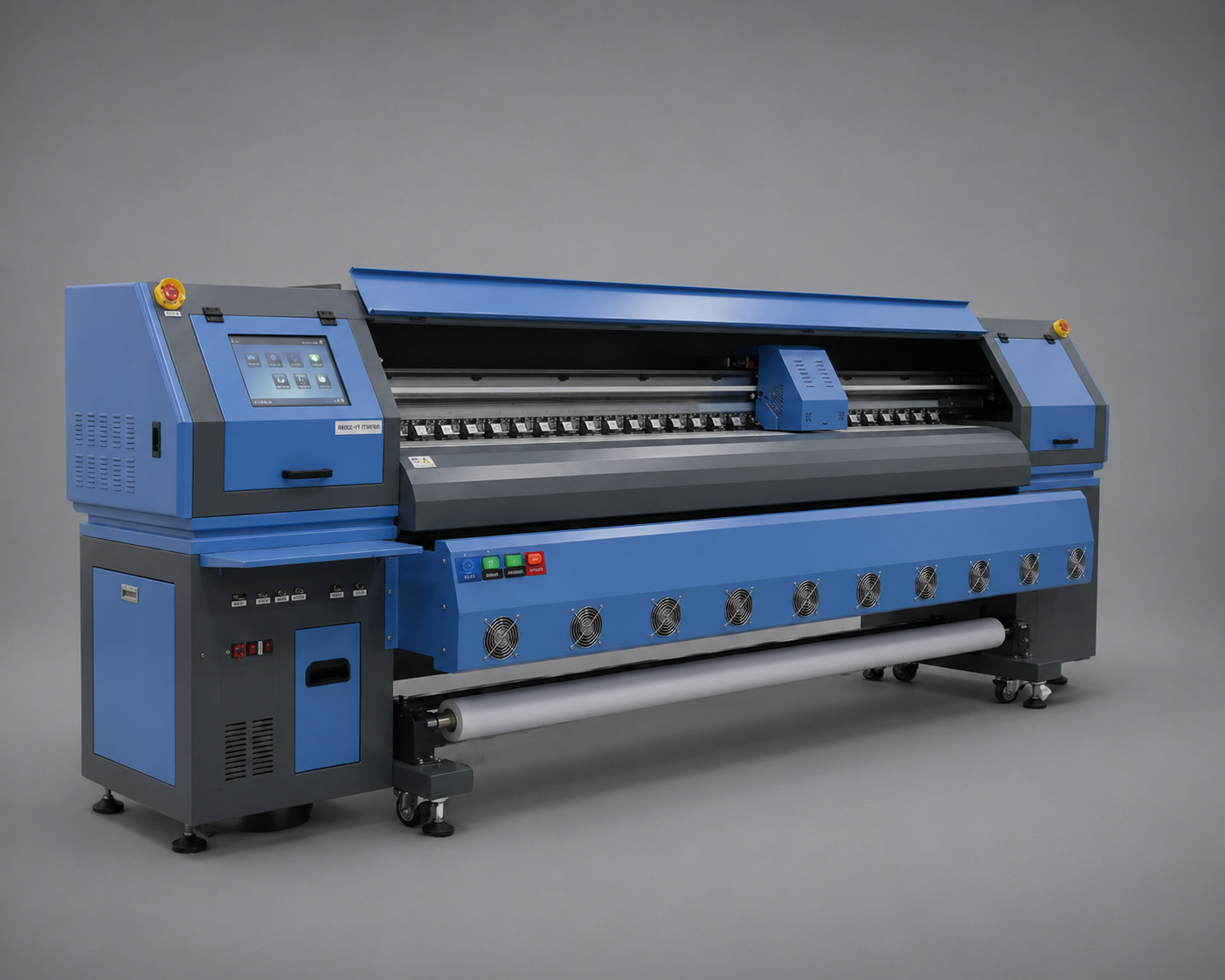

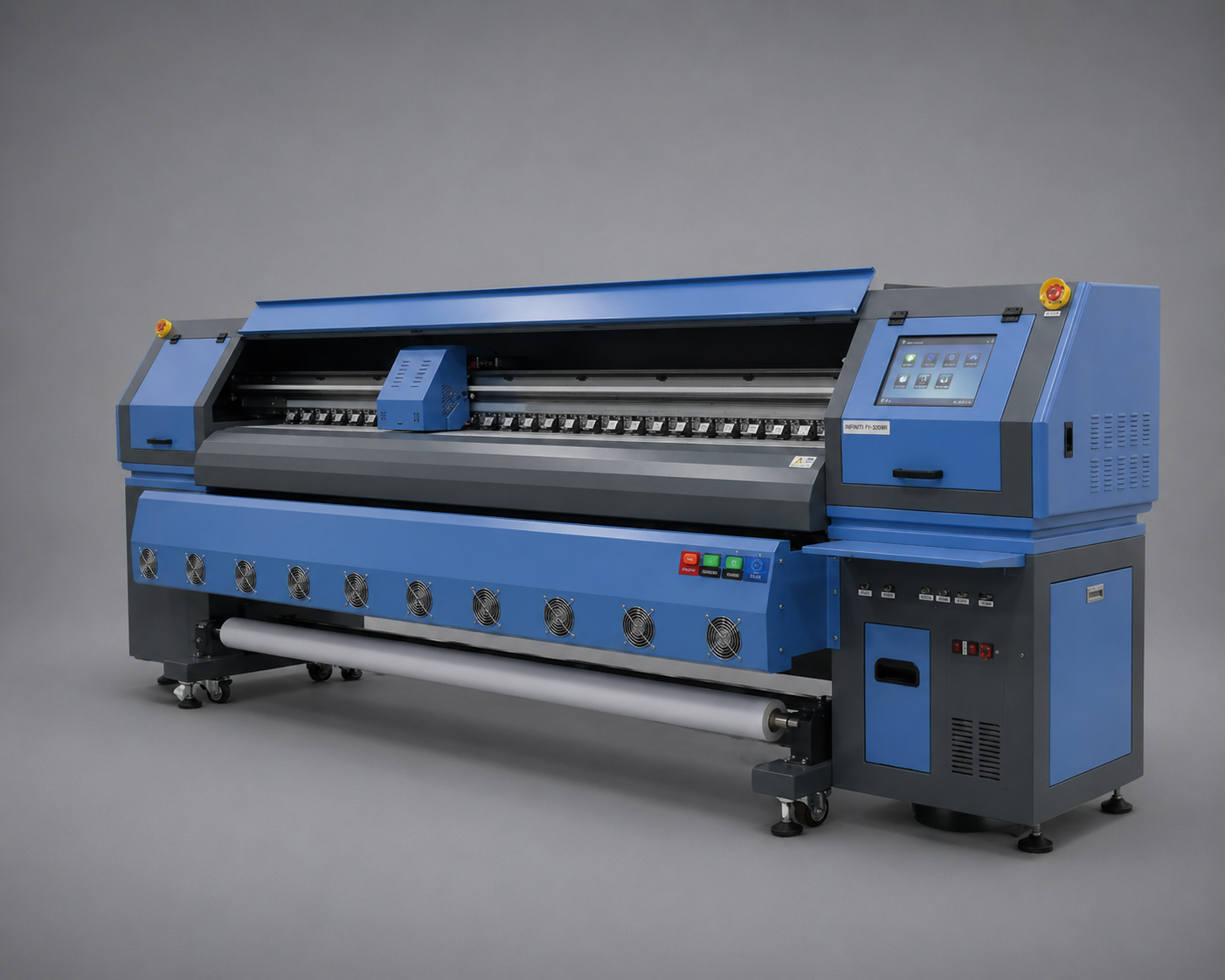

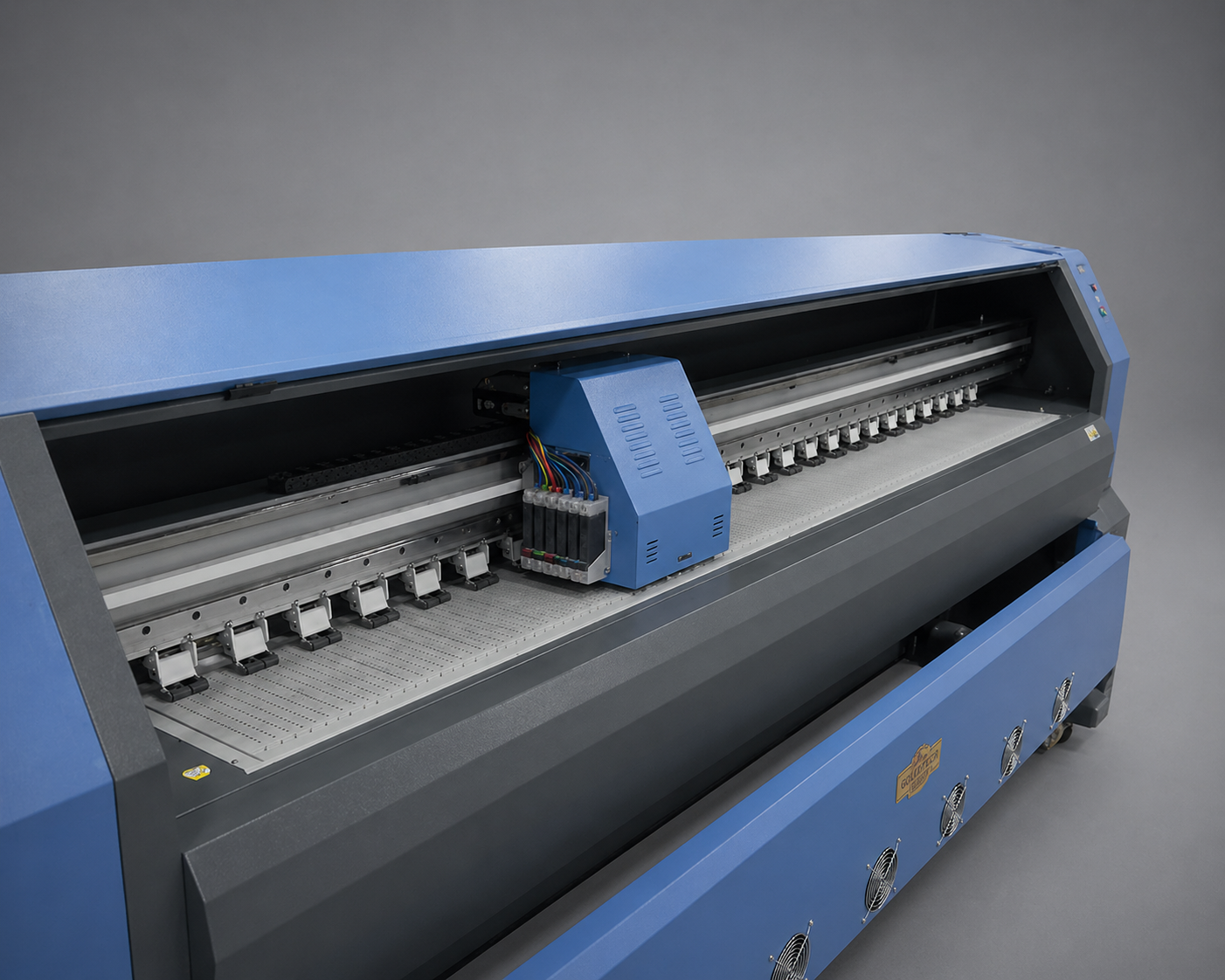

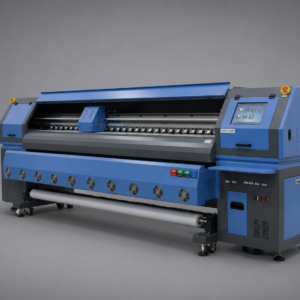

| MAXJET PLUS 3304KHI SOLVENT PRINTING MACHINE | ||
|---|---|---|
| Model | Maxjet 3304 KHI/PL | Maxjet 3308 KHI/PL |
| Print Head | KONICA 512 42/35 PL | |
| Number of Printhead | 4 | 8 |
| Number of Head Nozzle | 1024 | |
| Maximum Bed Print width | 3300mm | |
| Maximum Print Width | 3200mm | |
| Print Speed | w/o Feather | With Feather |
| 360x360,2 Pass | 34 sqm/hr | 65 sqm/hr |
| 480x360,2 Pass | 40 sqm/hr | 43 sqm/hr |
| 360x540,3 Pass | 30 sqm/hr | 56 sqm/hr |
| Color | CMYK | |
| Media | Paper, Advertising Banner, PVC, Mesh, Vinyl, Window Film & Canvas | |
| Resolution | Up to 1440 dpi | |
| Media Feeding | Auto Feeding, Auto Take up / Roll Less than 85kg | |
| Motion Control | JMC X Motor & Driver and Y AC Servo Motor & Driver for High Speed Printing | |
| Auto Cleaning System | Negative Pressure Cleaning, Solvent Cleaning & Anti Clogging Flash Function | |
| Media Heating | Pre Heater, Bed & Post Heater Infrared Heater & Cooling Fan System | |
| Image Format | Bitmap, JPEG, PDF, TIFF | |
| Color Management | Superion ICC Profile | |
| Work Flow | RIP and print not same time : print after RIP | |
| Print Interface | USB 2.0 / 3.0 | |
| Ink Type | Eco-solvent / solvent based ink | |
| Software | Photo Print / Maintop / Ultra Print | |
| Print Head Height | 5mm (Maximum) | |
| Work Station | Windows 7, 64 bit & Windows 10, 64bit | |
| Voltage | 200V (+10%) 15A, 50Hz / 60Hz | |
| Power Consumption | 2600w (220AC) | |
| Working Environment | Temperature 20°C – 26°C | Humidity 40% – 60% | |
| Machine Dimension | Length 4.50M | Width 1.15M | Height 1.55M | |
| Machine Weight | Gross 900kg | Net 700kg | |
